Broadcom LimitedUnited States

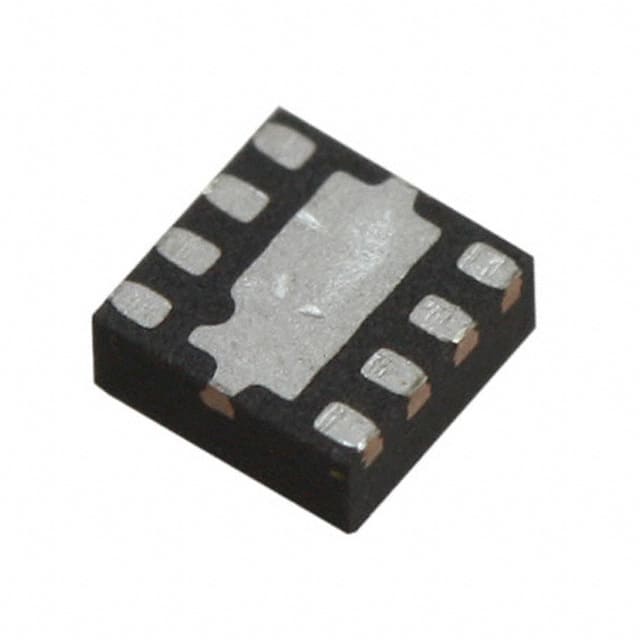

FET RF 7V 2GHZ 8-LPCC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 300mA |
| Current - Test | 135 mA |
| Power - Output | 24.5dBm |
| Voltage - Rated | 7 V |
| Voltage - Test | 4 V |
| AC and DC characteristics | |
| Frequency | 2GHz |
| Gain | 20dB |
| Noise Figure | 0.6dB |
| Environment and package | |
| Package | Bulk |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-LPCC (2x2) |
| Other | |
| Base Product Number | ATF-531P8 |
| Mfr | Broadcom Limited |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | E-pHEMT |
