Analog Technologies, Inc.United States

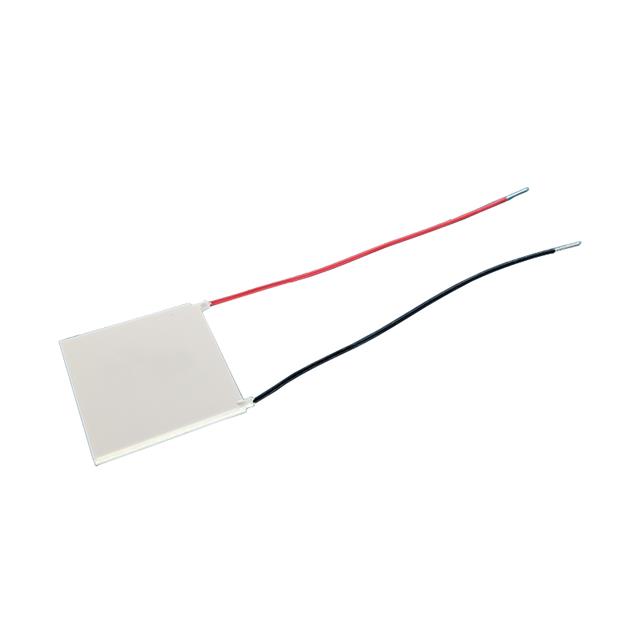

ATE1-TC-127-4ASH
Thermoelectric, Peltier ModulesLONG LIFE TEC 127 PAIRS 34W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 4 A |
| Voltage - Max | 17.5 V |
| Environment and package | |
| Height | 4.10mm |
| Operating Temperature | 74.5°C |
| Size / Dimension | Square - 39.70mm L x 39.70mm W |
| Other | |
| Delta Tmax @ Th | 78°C @ 74.5°C |
| Features | Lead Wires, Sealed - Silicone RTV |
| Manufacturer | Analog Technologies, Inc. |
| Number of Stages | 1 |
| Packaging | Tape & Box (TB) |
| Part Status | Active |
| Qmax @ Th | 34W @ 74.5°C |
| Series | ATE1 |
