Analog Technologies, Inc.United States

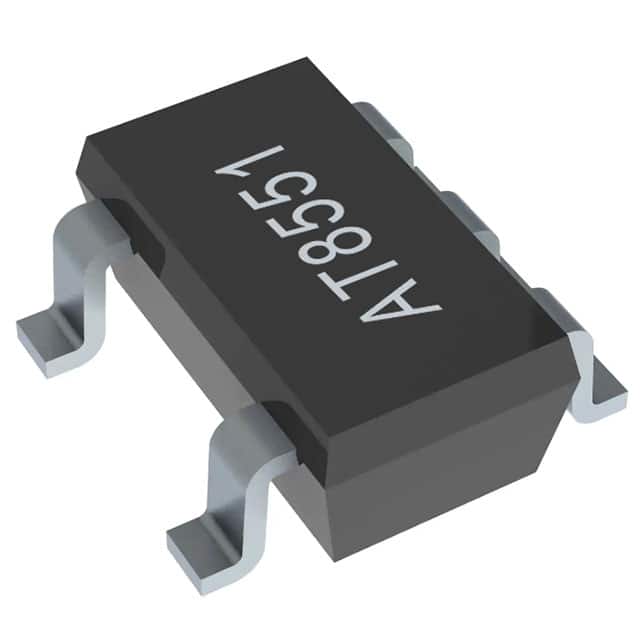

Zero-Drift RRIO CMOS Op-Amp
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.7 ~ 5.5 V
Gain bandwidth product4.5 MHzTyp
Input offset voltage1 µVTyp
Quiescent current640 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 50 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 640µA |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.7 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 4.5 MHz |
| Slew Rate | 2.7V/µs |
| Voltage - Input Offset | 1 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Amplifier Type | CMOS |
| Mfr | Analog Technologies, Inc. |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
Documents
No documents are linked to this part yet.
