View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 250mA |
| Current - Test | 250mA |
| Lumens/Watt @ Current - Test | 42 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Environment and package | |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Luminous Flux @ Current/Temperature | 38lm (Typ) |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Supplier Device Package | CSMD |
| Temperature - Test | 25°C |
| Thermal Resistance of Package | 120°C/W |
| Other | |

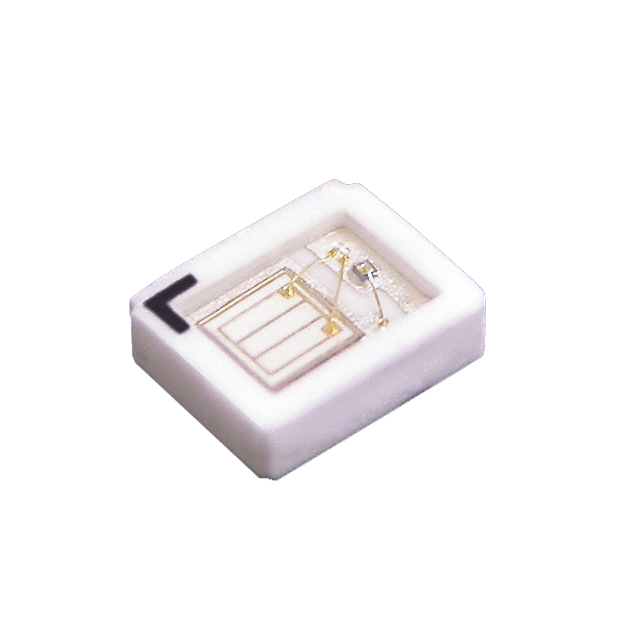

| Base Product Number | AT2520 |
| Color | Green |
| Mfr | Kingbright |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | - |
| Viewing Angle | 120° |
| Wavelength | 530nm (Typ) |
