PanasonicJapan

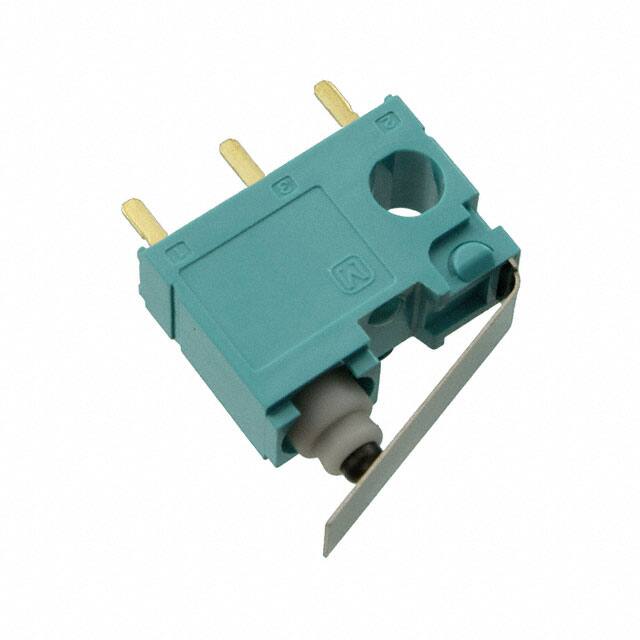

SWITCH SNAP ACT SPDT 100MA 30V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 100mA (DC) |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Type | Lever, Straight |
| Base Product Number | ASQ115 |
| Circuit | SPDT |
| Differential Travel | - |
| Electrical Life | 200,000 Cycles |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | Panasonic Electric Works |
| Operating Force | 173gf |
| Operating Position | 0.366" (9.3mm) |
| Overtravel | 0.102" (2.6mm) |
| Pretravel | - |
| Product Status | Active |
| Release Force | - |
| Series | ASQ1 |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
