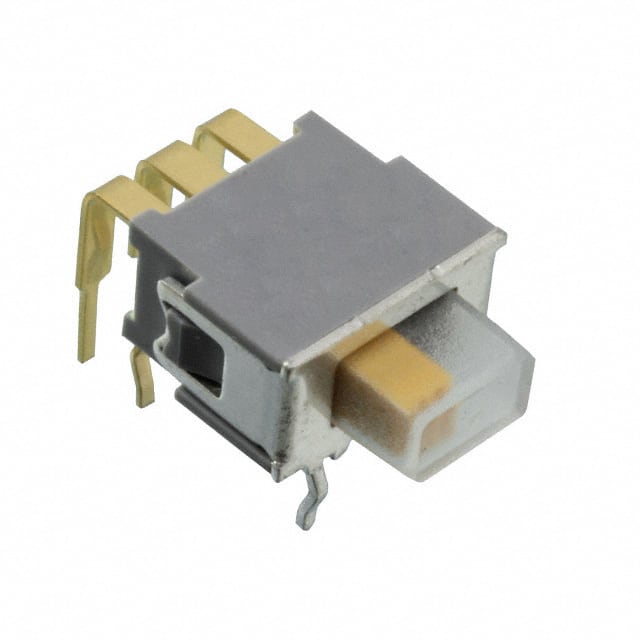

SWITCH SLIDE DPDT 50MA 60V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-On
Current rating50 mAMax
Voltage rating60 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 50mA (AC/DC) |
| Voltage Rating - AC | 60 V |
| Voltage Rating - DC | 60 V |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -20°C~85°C |
| Package | Tray |
| Other | |
| Actuator Length | 2.80mm |
| Actuator Material | - |
| Actuator Type | Standard |
| Base Product Number | ASE2D-6M |
| Circuit | DPDT |
| Contact Finish | Gold |
| Contact Material | - |
| Contact Timing | Non-Shorting (BBM) |
| Electrical Life | 10,000 Cycles |
| Features | Washable |
| Mechanical Life | - |
| Mfr | Nidec Copal Electronics |
| Operating Force | 70 ~ 500gf |
| Product Status | Active |
| Series | ASE |
| Switch Function | On-On |
| Switch Travel | 2.20mm |
| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
