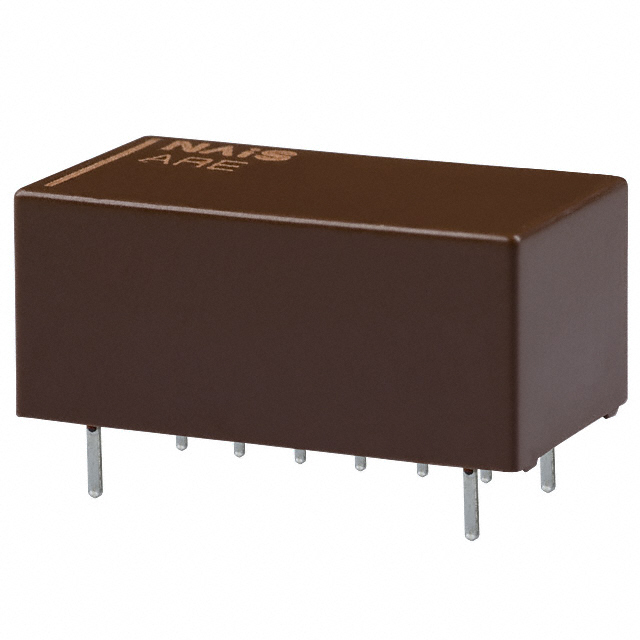

ARE13A03
PanasonicJapan

ARE13A03

ObsoleteHigh Frequency (RF) Relays

RELAY RF SPDT 500MA 3V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current66.7 mA
Coil Power200mW
Coil Voltage3VDC
Contact Rating (Current)500 mA
Must Operate Voltage2.25 VDC
Must Release Voltage0.3 VDC
Switching Voltage30VDC - Max
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 70°C
PackageTube
Other
Base Product NumberARE13A
Coil Resistance45 Ohms
Coil TypeNon Latching
Contact FormSPDT (1 Form C)
Contact MaterialGold Plating
Features-
MfrPanasonic Electric Works
Operate Time10 ms
Product StatusObsolete
Release Time5 ms
SeriesARE
Termination StyleGull Wing
