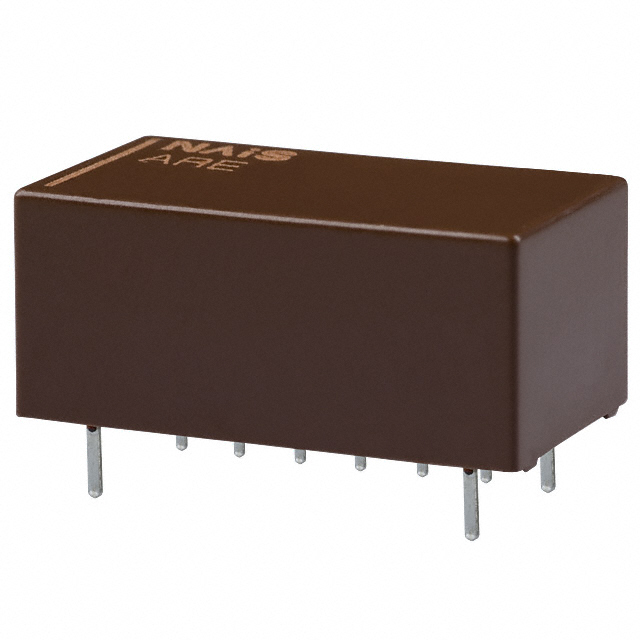

ARE1312
PanasonicJapan

ARE1312

ObsoleteHigh Frequency (RF) Relays

RELAY RF SPDT 500MA 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current16.7 mA
Coil Power200mW
Coil Voltage12VDC
Contact Rating (Current)500 mA
Must Operate Voltage9 VDC
Must Release Voltage1.2 VDC
Switching Voltage30VDC - Max
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 70°C
PackageBulk
Other
Base Product NumberARE13
Coil Resistance720 Ohms
Coil TypeNon Latching
Contact FormSPDT (1 Form C)
Contact MaterialGold Plating
Features-
MfrPanasonic Electric Works
Operate Time10 ms
Product StatusObsolete
Release Time5 ms
SeriesARE
Termination StylePC Pin
