Microchip TechnologyUnited States

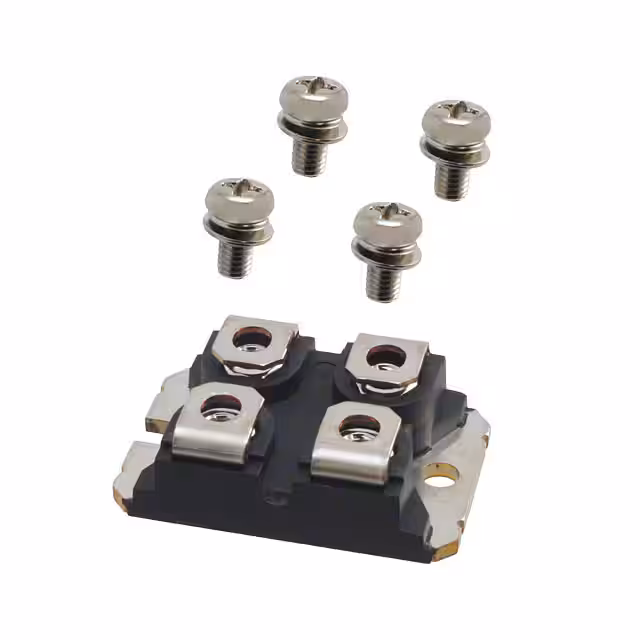

BRIDGE RECT 1P 600V 90A SOT227
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current90 A
Forward voltage2.3 VMax · 60 A
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 90 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.3 V @ 60 A |
| Voltage - Peak Reverse (Max) | 600 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Bulk |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
| Other | |
| Base Product Number | APT60DF60 |
| Diode Type | Single Phase |
| Mfr | Microchip Technology |
| Product Status | Active |
| Series | - |
| Technology | Standard |
