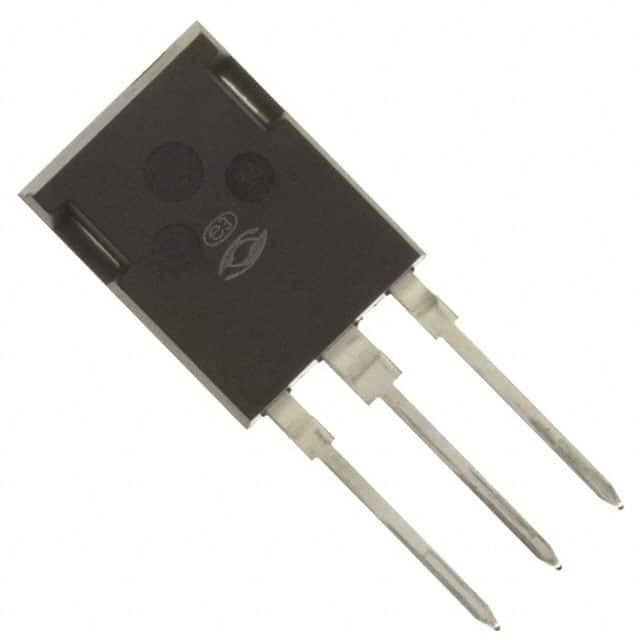

IGBT 1200V 106A 694W TO-247
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 106 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Power - Max | 694 W |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tube |
| Package / Case | TO-247-3 Variant |
| Other | |
| Base Product Number | APT50GT120 |
| Gate Charge | 240 nC |
| IGBT Type | NPT |
| Input Type | Standard |
| Mfr | Microsemi Corporation |
| Product Status | Active |
| Series | Thunderbolt IGBT® |
| Switching Energy | 3585µJ (on), 1910µJ (off) |
| Td (on/off) @ 25°C | 23ns/215ns |
| Test Condition | 800V, 50A, 4.7Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A |
