Microsemi CorporationUnited States

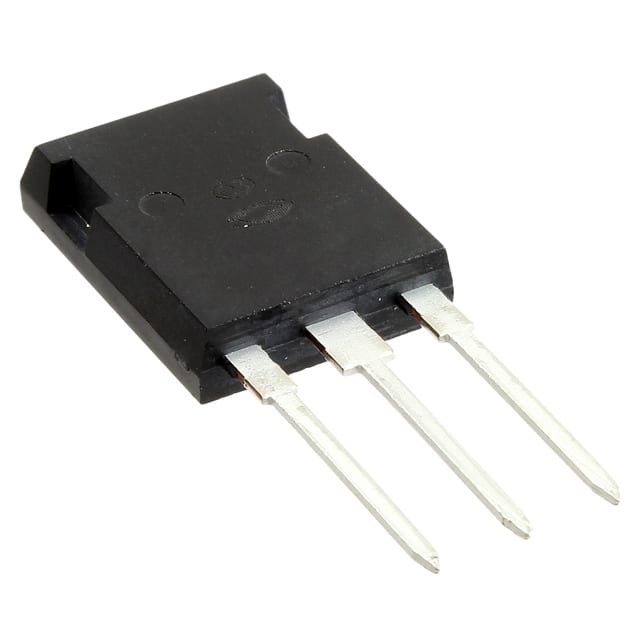

IGBT 600V 56A 250W TO247
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 56 A |
| Current - Collector Pulsed (Icm) | 65 A |
| Power - Max | 250 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Other | |
| Base Product Number | APT15GP60 |
| Gate Charge | 55 nC |
| IGBT Type | PT |
| Input Type | Standard |
| Mfr | Microsemi Corporation |
| Product Status | Active |
| Series | - |
| Switching Energy | 130µJ (on), 121µJ (off) |
| Td (on/off) @ 25°C | 8ns/29ns |
| Test Condition | 400V, 15A, 5Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 15A |
