Microchip TechnologyUnited States
IGBT 1200V 45A 195W TO247
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 45 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Power - Max | 195 W |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tube |

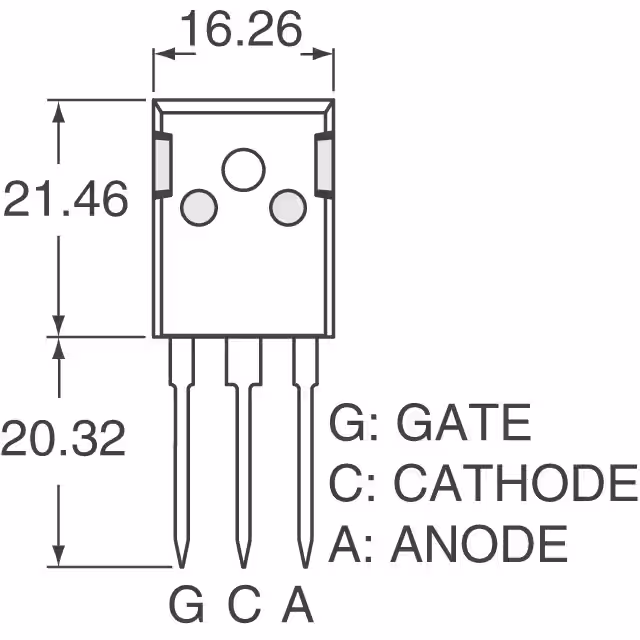

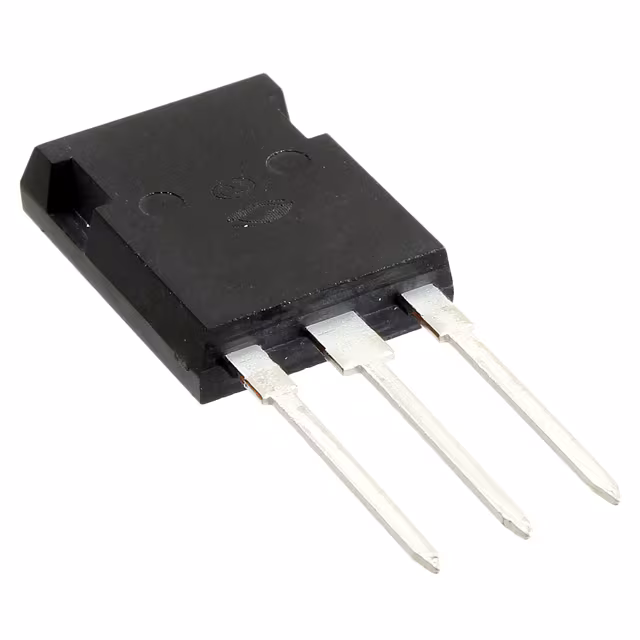

| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 [B] |
| Other | |
| Base Product Number | APT15GN120 |
| Gate Charge | 90 nC |
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Mfr | Microchip Technology |
| Product Status | Active |
| Series | - |
| Switching Energy | 410µJ (on), 950µJ (off) |
| Td (on/off) @ 25°C | 10ns/150ns |
| Test Condition | 800V, 15A, 4.3Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 15A |
