TrumeterUnited Kingdom

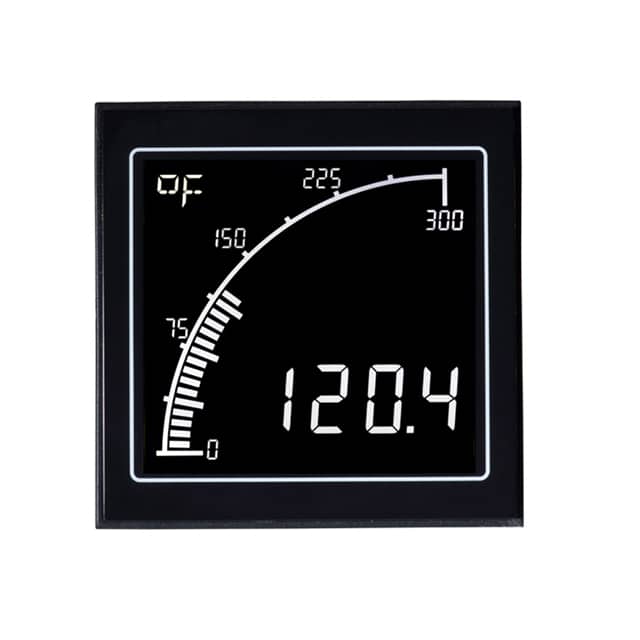

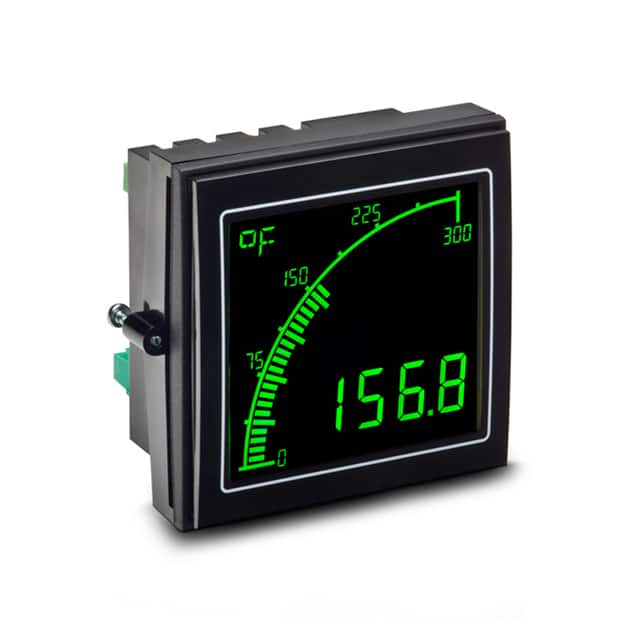

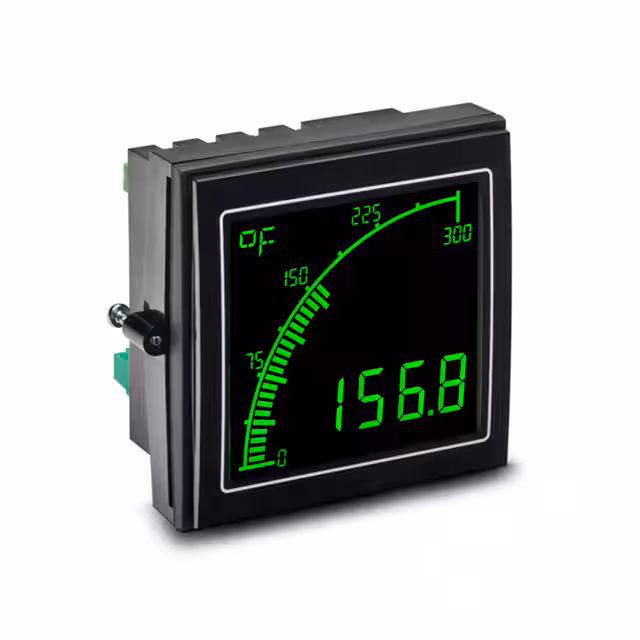

APM TEMPERATURE METER NEGATIVE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 12 ~ 24VAC/DC |
| Environment and package | |
| Display Characters - Height | 0.470" (11.94mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C~60°C |
| Package | Box |
| Panel Cutout Dimensions | Square - 68.00mm x 68.00mm |
| Other | |
| Base Product Number | APM-TEMP |
| Display Type | LCD - Tri Color Characters, Backlight |
| Features | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range | - |
| Measuring Type | RTD, Thermocouple |
| Mfr | Trumeter |
| Number of Characters Per Row | 4 |
| Output Type | Analog, Digital (2) |
| Product Status | Active |
| Series | APM |
| Termination Style | Screw Terminal |
| Type | Temperature Meter |
| Weight | - |
