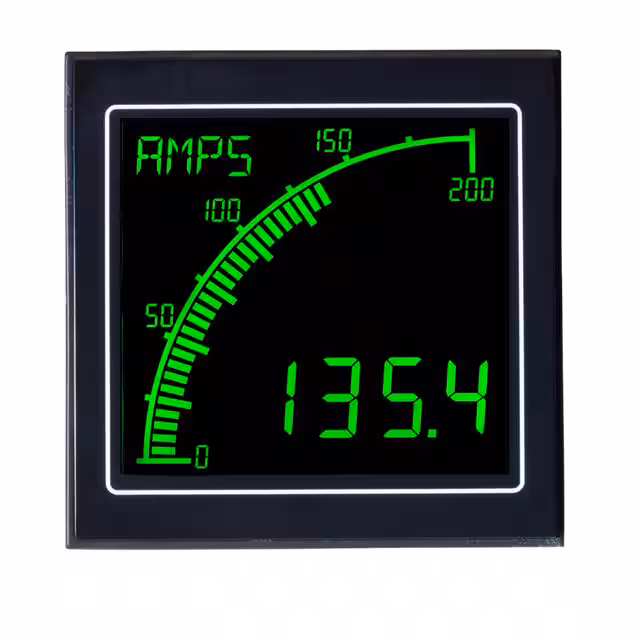

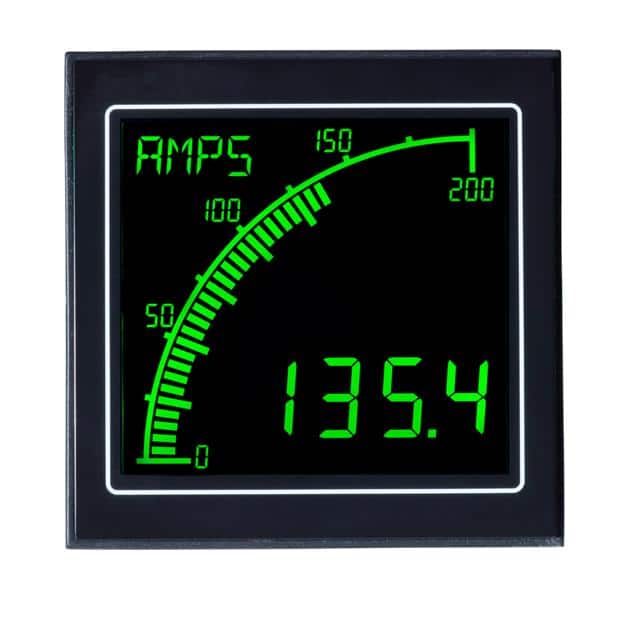

APM-M1-ANO
TrumeterUnited Kingdom

APM-M1-ANO

ActivePanel Meters

NEG LCD W O/P 12-240 VAC/DC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply12 ~ 24VDC
Environment and package
Display Characters - Height-
Mounting TypePanel Mount
Operating Temperature-10°C~60°C
PackageBulk
Panel Cutout DimensionsSquare - 68.07mm x 68.07mm
Other
Base Product NumberAPM-M1
Display TypeLCD - Black Characters, Tri Color Backlight
Features-
Ingress ProtectionIP65 - Dust Tight, Water Resistant, NEMA 4, 12
Measuring Range0 ~ 10000A, 0 ~ 600VAC/DC, 2 ~ 400Hz
Measuring TypeCurrent, Frequency, Voltage
MfrTrumeter
Number of Characters Per Row4
Output TypeAnalog, Digital (2)
Product StatusActive
SeriesAPM
Termination StyleScrew Terminal
TypeMultifunction Meter
Weight-

Documents

No documents are linked to this part yet.
