MEAN WELL USA Inc.Taiwan, China

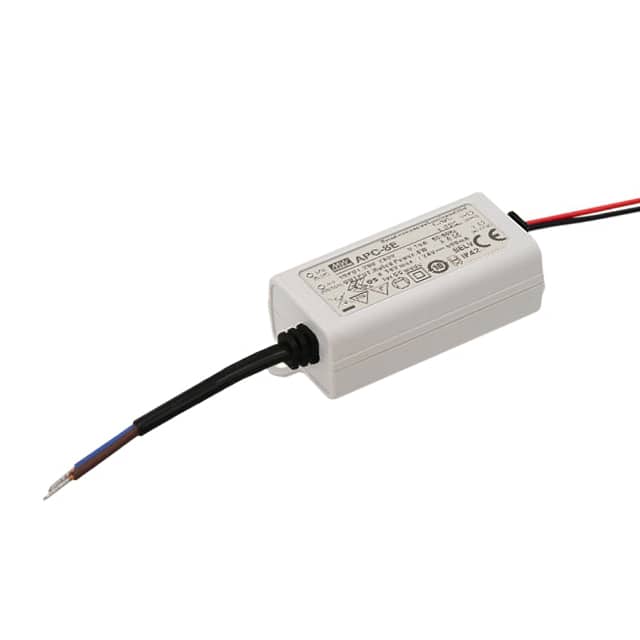

LED DRIVER CC AC/DC 6-11V 700MA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 700mA |
| Power (Watts) | 8 W |
| Voltage - Input (Max) | 264VAC |
| Voltage - Input (Min) | 180VAC |
| Voltage - Isolation | 3.75 kV |
| Voltage - Output | 6 ~ 11V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -30°C~70°C |
| Package | Box |
| Size / Dimension | 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm) |
| Other | |
| Approval Agency | CB, CE, ENEC |
| Base Product Number | APC-8 |
| Dimming | - |
| Efficiency | 77.5% |
| Features | SCP |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Ratings | IP42 |
| Series | APC-8E (8W) |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
