MEAN WELL USA Inc.Taiwan, China

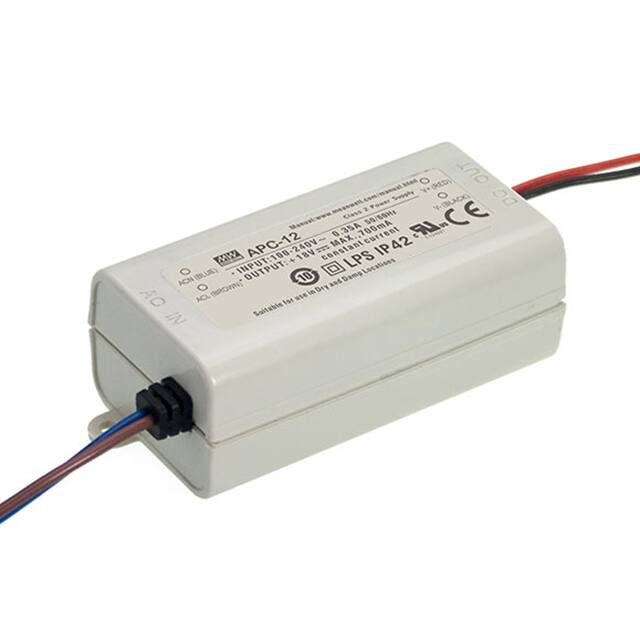

LED DRIVER CC AC/DC 9-18V 700MA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 700mA |
| Power (Watts) | 13 W |
| Voltage - Input (Max) | 264VAC |
| Voltage - Input (Min) | 90VAC |
| Voltage - Isolation | 3.75 kV |
| Voltage - Output | 9 ~ 18V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -30°C~70°C |
| Package | Box |
| Size / Dimension | 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm) |
| Other | |
| Approval Agency | CCC, CE, cURus |
| Base Product Number | APC-12 |
| Dimming | - |
| Efficiency | 80% |
| Features | OVP, SCP |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Ratings | IP42 |
| Series | APC-12 (12W) |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
