KingbrightTaiwan, China

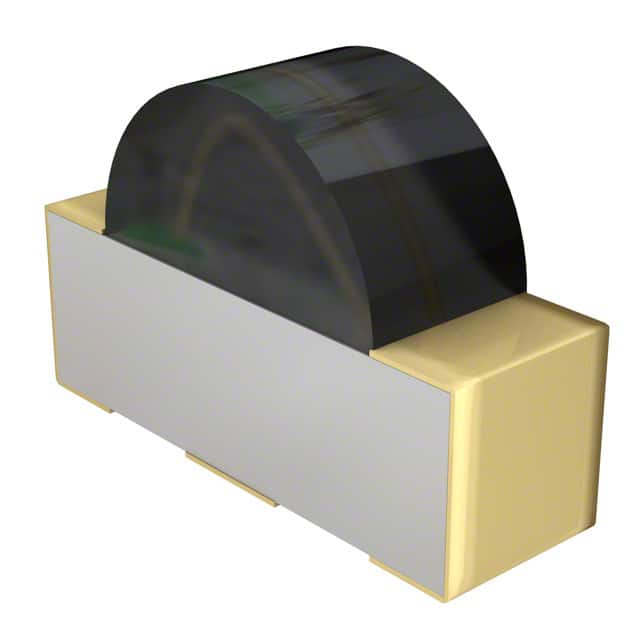

SENSOR PHOTO 940NM SIDE VIEW SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 800 µA |
| Current - Dark (Id) (Max) | 100 nA |
| Power - Max | 100 mW |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Other | |
| Base Product Number | APA3010 |
| Mfr | Kingbright |
| Orientation | Side View |
| Product Status | Active |
| Series | - |
| Viewing Angle | 110° |
| Wavelength | 940nm |
Documents
No documents are linked to this part yet.
