Alpha & Omega Semiconductor Inc.United States
MOSFET N/P-CH 40V 6A/5A 8SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6A, 5A |
| Drain to Source Voltage (Vdss) | 40V |
| Power - Max | 2W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |

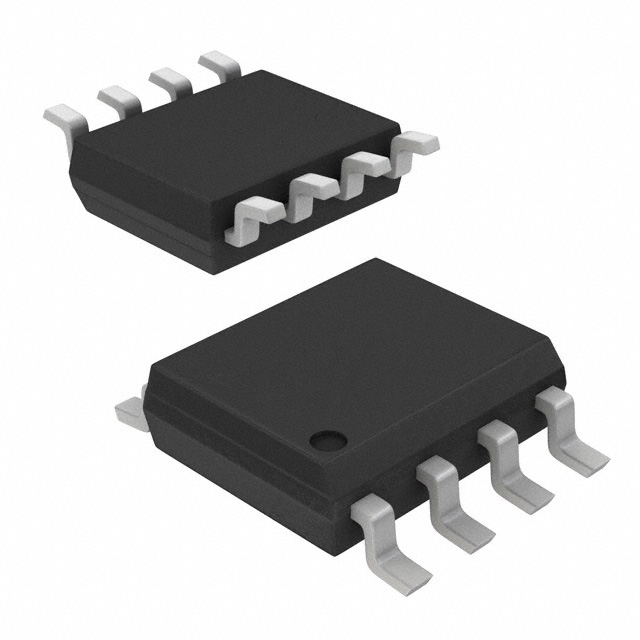

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | AO4614 |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Gate Charge (Qg) (Max) @ Vgs | 10.8nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 20V |
| Mfr | Alpha & Omega Semiconductor Inc. |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
