ZF ElectronicsGermany

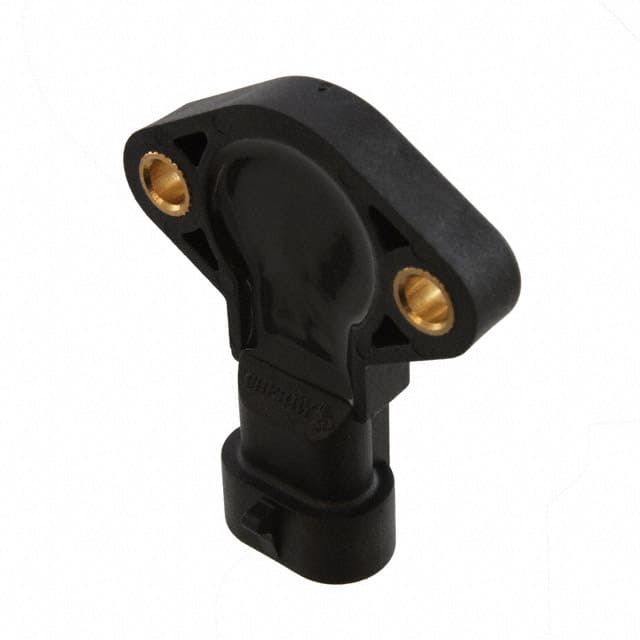

SENSOR ANGLE 360DEG CONNECTOR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 5V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Other | |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle |
| Linearity | ±3.5% |
| Linear Range | - |
| Mfr | ZF Electronics |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Product Status | Active |
| Resistance Tolerance | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Series | AN8 |
| Technology | Hall Effect |
| Termination Style | Connector |
Documents
No documents are linked to this part yet.
