PanasonicJapan

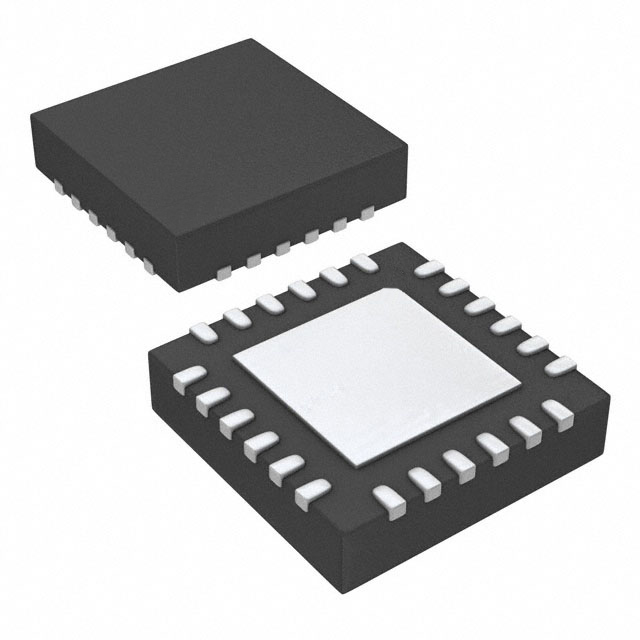

IC REG TRPL BUCK/LNR SYNC 24HQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage/Current - Output 1 | 1V, 800mA |
| Voltage/Current - Output 2 | 1.8V, 800mA |
| Voltage/Current - Output 3 | 0.9V, 10mA |
| Voltage - Supply | 2.9V ~ 5.5V |
| AC and DC characteristics | |
| Frequency - Switching | 1.2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-HQFN (4x4) |
| Other | |
| Base Product Number | AN30185 |
| Mfr | Panasonic Electronic Components |
| Number of Outputs | 3 |
| Product Status | Obsolete |
| Series | - |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| w/LED Driver | No |
| w/Sequencer | No |
| w/Supervisor | No |
