PanasonicJapan

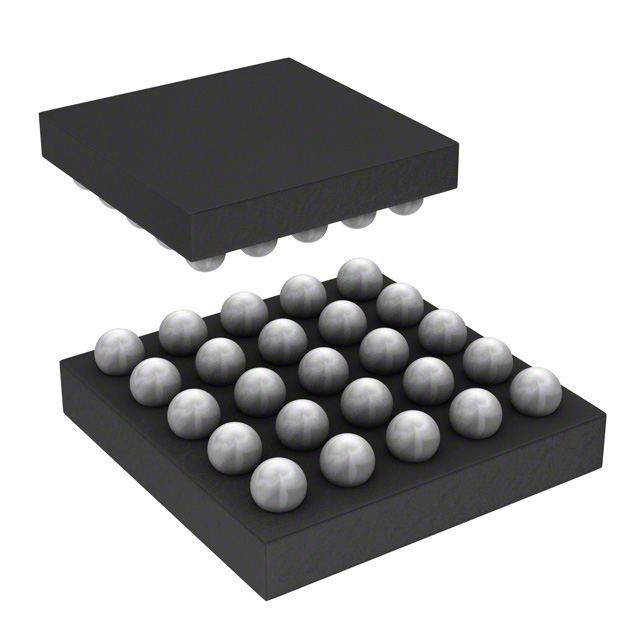

IC REG 8OUT BCK/LNR SYNC 25WLCSP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage/Current - Output 1 | 0.8V ~ 2.4V, 600mA |
| Voltage/Current - Output 2 | 0.8V ~ 2.4V, 600mA |
| Voltage/Current - Output 3 | 1V ~ 3.3V, 300mA |
| Voltage - Supply | 1.7V ~ 5.5V |
| AC and DC characteristics | |
| Frequency - Switching | 3MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 25-VFBGA, WLCSP |
| Supplier Device Package | 25-WLCSP (2.15x2.15) |
| Other | |
| Base Product Number | AN30182 |
| Mfr | Panasonic Electronic Components |
| Number of Outputs | 8 |
| Product Status | Obsolete |
| Series | - |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (6) |
| w/LED Driver | No |
| w/Sequencer | No |
| w/Supervisor | No |
