PanasonicJapan

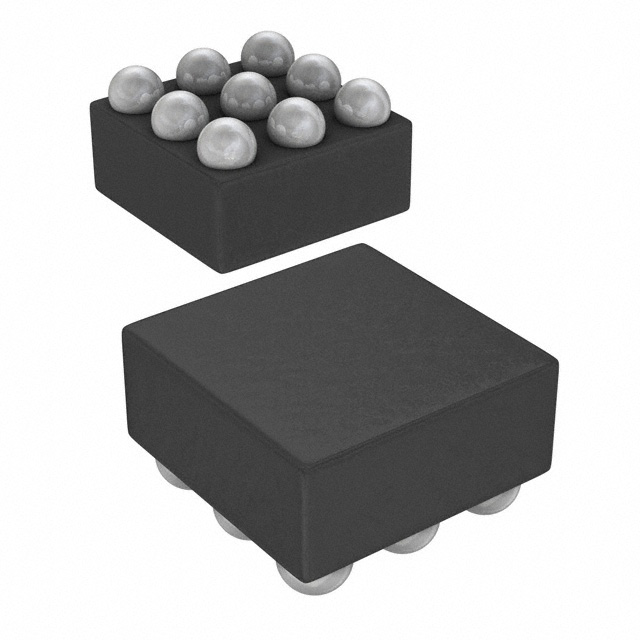

IC REG BUCK PROG 1.2A 9WLCSP
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.5 ~ 5.5 V
Output voltage1.2 V
Output current1.2 AMax
Switching frequency3 MHz
| Power | |
|---|---|
| Current - Output | 1.2A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V, 1.35V, 1.85V, 3.3V |
| AC and DC characteristics | |
| Frequency - Switching | 3MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Package / Case | 9-VFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.46x1.46) |
| Other | |
| Base Product Number | AN30180 |
| Function | Step-Down |
| Mfr | Panasonic Electronic Components |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Programmable |
| Product Status | Obsolete |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
