Mueller Electric CoUnited States

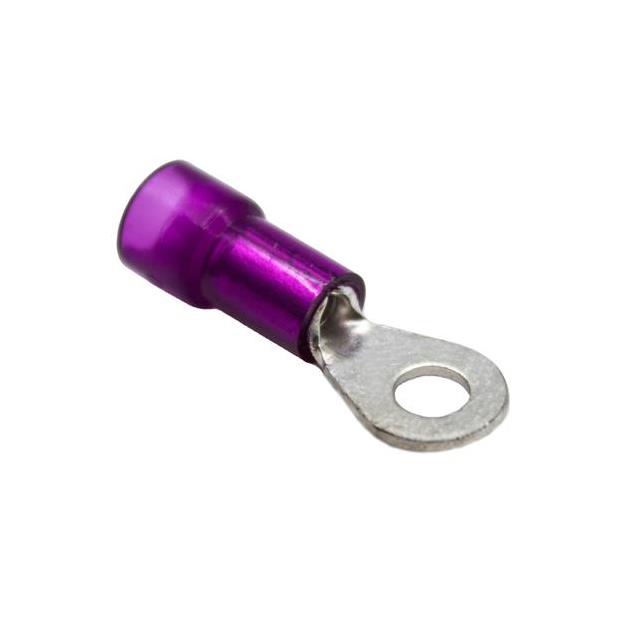

22-18 NYLON INSULATED #6 RING TE
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bag |
| Stud/Tab Size | 6 Stud |
| Other | |
| Color | Red |
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Features | - |
| Insulation | Insulated |
| Insulation Diameter | 0.160" (4.06mm) |
| Length - Overall | 0.870" (22.10mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Mueller Electric Co |
| Product Status | Active |
| Series | - |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.028" (0.71mm) |
| Width - Outer Edges | 0.290" (7.37mm) |
| Wire Gauge | 18-22 AWG |
Documents
No documents are linked to this part yet.
