SilvertelUnited Kingdom

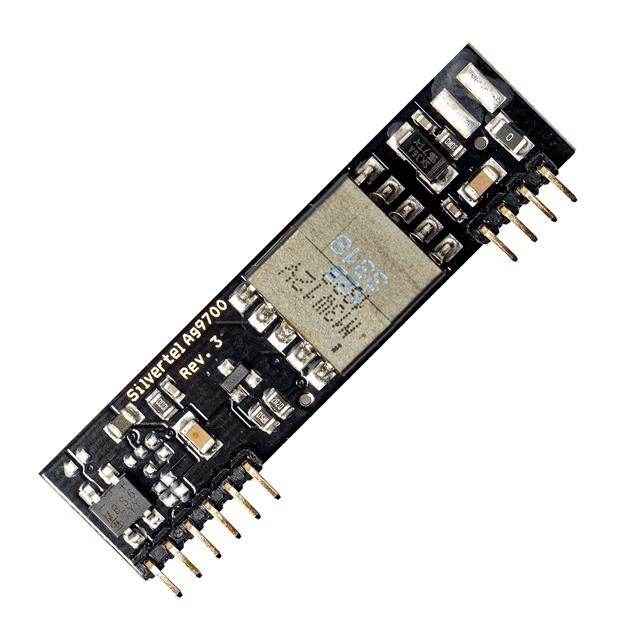

PD MODULE, ISOLATED DC-DC CONVER
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 57 V
Output voltage24 V
Output current500 mAMax
Power12 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 500mA |
| Power (Watts) | 12 W |
| Voltage - Input (Max) | 57V |
| Voltage - Input (Min) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Size / Dimension | 2.20" L x 0.75" W x 0.55" H (56.0mm x 19.0mm x 14.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Efficiency | 85% |
| Features | OCP, OTP |
| Mfr | Silvertel |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | AG9700 |
| Standard Number | 60950-1 |
| Type | Isolated PoE Module |
Documents
No documents are linked to this part yet.
