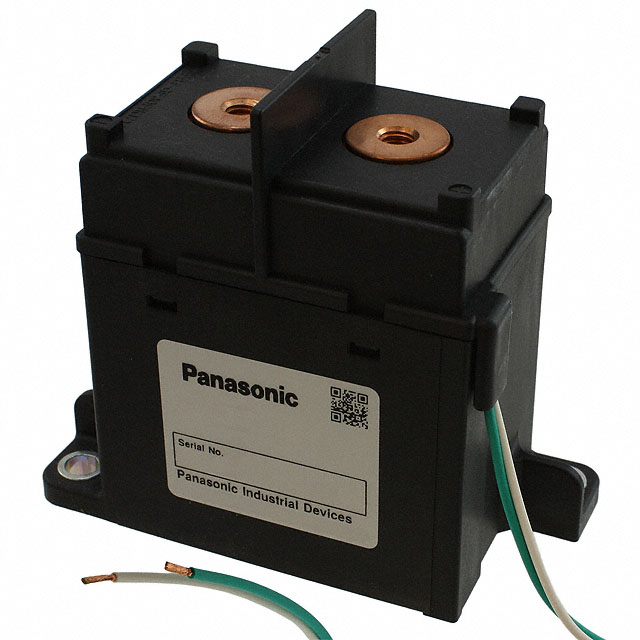

AEV17012
PanasonicJapan

AEV17012

Not For New DesignsAutomotive Relays

RELAY AUTOMOTIVE SPST 200A 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current500 mA
Coil Power6W
Coil Voltage12VDC
Contact Rating (Current)200 A
Must Operate Voltage9 VDC
Must Release Voltage1 VDC
Switching Voltage450VDC - Nom
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 80°C
PackageBulk
Other
Coil TypeNon Latching
Contact FormSPST-NO (1 Form A)
Contact Material-
Features-
MfrPanasonic Electric Works
Operate Time50 ms
Product StatusNot For New Designs
Release Time30 ms
SeriesAEV
Termination StyleWire Leads

Documents

No documents are linked to this part yet.
