Texas InstrumentsUnited States

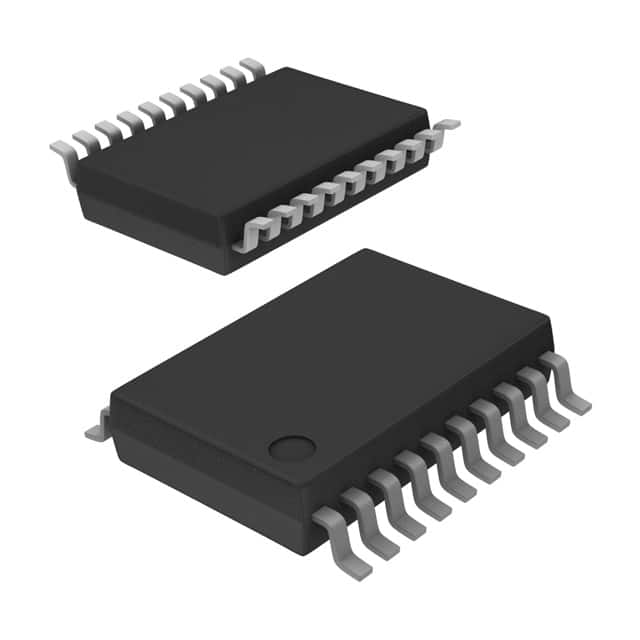

IC ADC 24BIT SIGMA-DELTA 20SSOP
All alternatives
View full reportTechnical parameters
Key specs
Resolution24 bit
Sampling rate30 kSPSMax
Inputs1 ~ 2
InterfaceSPI
Supply voltage≥ 5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Other | |
| Architecture | Sigma-Delta |
| Base Product Number | ADS1255 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Features | PGA |
| Input Type | Differential, Single Ended |
| Mfr | Texas Instruments |
| Number of A/D Converters | 1 |
| Number of Bits | 24 |
| Number of Inputs | 1, 2 |
| Product Status | Active |
| Ratio - S/H:ADC | - |
| Reference Type | External |
| Sampling Rate (Per Second) | 30k |
| Series | - |
Documents
No documents are linked to this part yet.
