Analog Devices Inc.United States

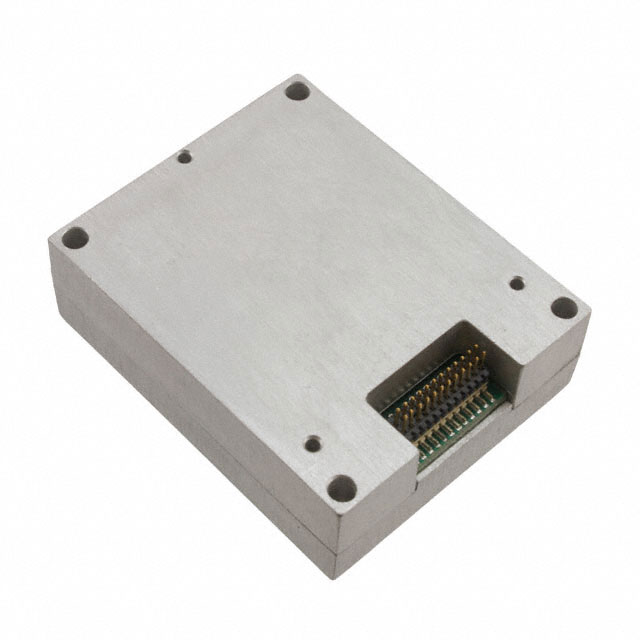

GYRO SENSOR 1200DEG/S 5V 335HZ
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 88 mA |
| Voltage - Supply | 4.85V ~ 5.15V |
| AC and DC characteristics | |
| Bandwidth | 335Hz |
| Environment and package | |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package | Box |
| Package / Case | Module |
| Other | |
| Axis | Z (Yaw) |
| Base Product Number | ADIS16133 |
| Features | Sleep Mode, Temperature Sensor |
| Mfr | Analog Devices Inc. |
| Output Type | SPI |
| Product Status | Obsolete |
| Range °/s | ±1200 |
| Sensitivity (LSB/(°/s)) | 20 |
| Sensitivity (mV/°/s) | - |
| Series | iSensor® |
| Type | Digital |
Documents
No documents are linked to this part yet.
