Analog Devices Inc.United States
IC QUADRATURE MOD 700MHZ 16TSSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 150 mA |
| Output Power | 5.1dBm |
| Voltage - Supply | 4.75V ~ 5.5V |
| AC and DC characteristics | |
| LO Frequency | 700MHz ~ 2.7GHz |
| Noise Floor | -156dBm/Hz |
| RF Frequency | 700MHz ~ 2.7GHz |
| Test Frequency | 2.14GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tube |

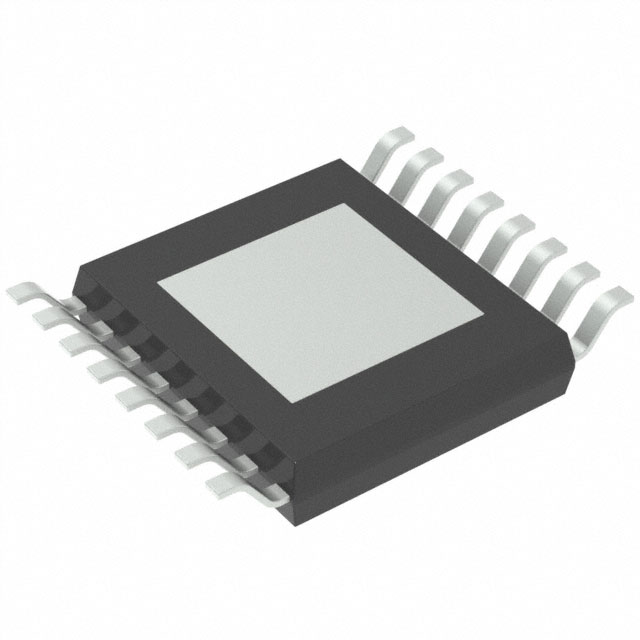

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Other | |
| Function | Modulator |
| Mfr | Analog Devices Inc. |
| P1dB | 5.6dBm |
| Product Status | Obsolete |
| Series | - |
