Analog Devices Inc.United States
IC DAC 16BIT V-OUT 64LQFP
All alternatives
View full reportTechnical parameters
Key specs
Resolution16 bit
Channels40
InterfaceSPI
Output typeVoltage
Supply voltage9 ~ 16.5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 9V ~ 16.5V, -4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| AC and DC characteristics | |
| Settling Time | 30µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tray |

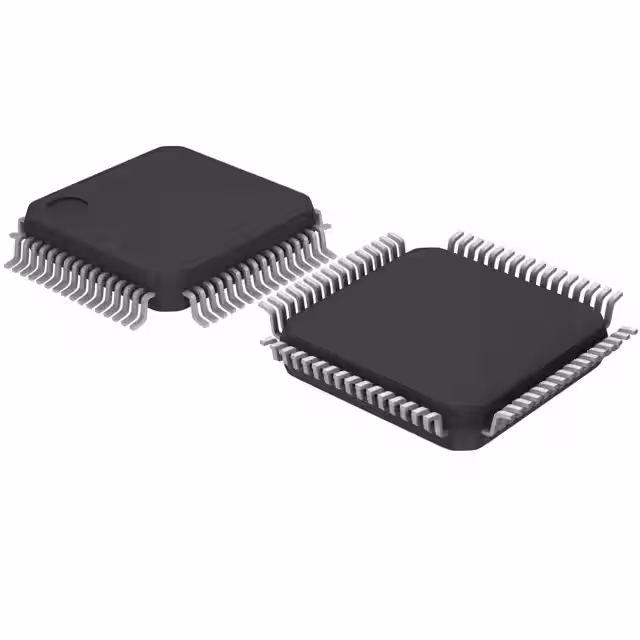

| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Other | |
| Architecture | String DAC |
| Base Product Number | AD5370 |
| Data Interface | SPI, DSP |
| Differential Output | No |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Mfr | Analog Devices Inc. |
| Number of Bits | 16 |
| Number of D/A Converters | 40 |
| Output Type | Voltage - Buffered |
| Product Status | Active |
| Reference Type | External |
| Series | - |
