Analog Devices Inc.United States

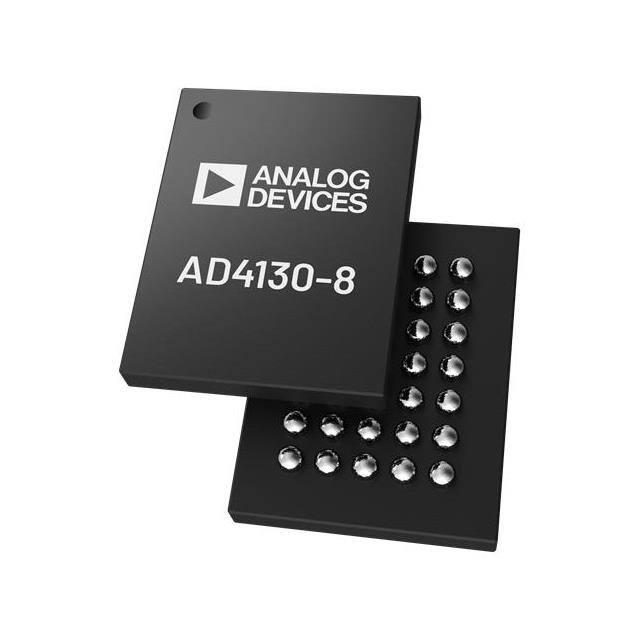

ULTRA-LOW POWER, SYSTEM 24 BIT A
All alternatives
View full reportTechnical parameters
Key specs
Resolution24 bit
Sampling rate2.4 kSPSMax
Inputs8 ~ 16
InterfaceSPI
Supply voltage1.71 ~ 3.6 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 1.71V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 35-UFBGA, WLCSP |
| Supplier Device Package | 35-WLCSP (2.7x3.56) |
| Other | |
| Architecture | Sigma-Delta |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Features | PGA |
| Input Type | Differential, Pseudo-Differential |
| Mfr | Analog Devices Inc. |
| Number of A/D Converters | 1 |
| Number of Bits | 24 |
| Number of Inputs | 8, 16 |
| Product Status | Active |
| Ratio - S/H:ADC | 0:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 2.4k |
| Series | - |
