Analog Devices Inc.United States

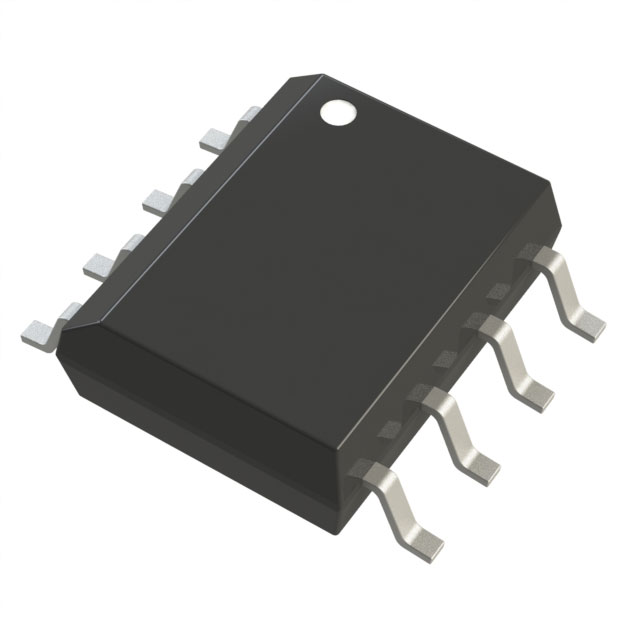

AD22105AR-REEL
Thermostats - Solid StateTHERMOSTAT PROG ACT HIGH 8SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 10mA |
| Current - Supply | 90µA, 120µA |
| Voltage - Supply | 2.7 V ~ 7 V |
| AC and DC characteristics | |
| Accuracy | ±2°C |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Switching Temperature | Programmable |
| Trip Temperature Threshold | Hot |
| Other | |
| Base Product Number | AD22105 |
| Features | Selectable Trip Point |
| Manufacturer | Analog Devices Inc. |
| Output | Active High |
| Output Function | OverTemp |
| Output Type | Open Collector |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Obsolete |
| Selectable Hysteresis | No |
| Series | - |
