ATOP TechnologiesTaiwan, China

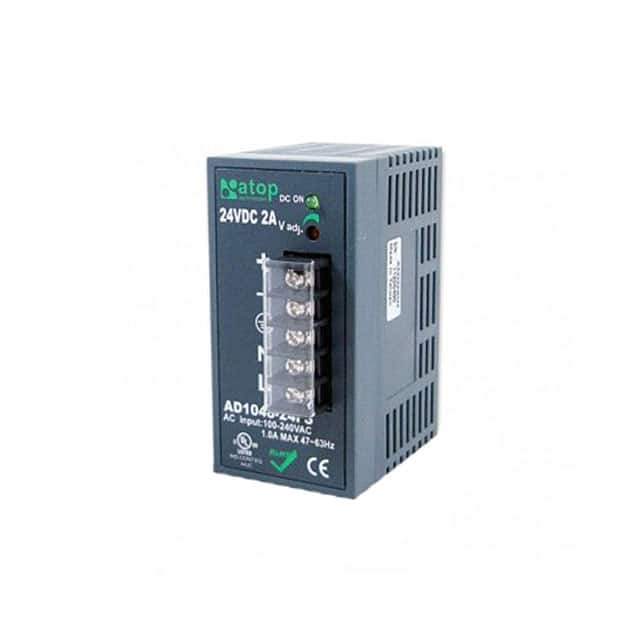

48W/2A DIN-RAIL 24VDC POWER SUPP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| AC Voltage - Input | 100 ~ 240 VAC |
| Current - Output (Max) | 2A |
| DC Voltage - Input (Max) | 370V |
| DC Voltage - Input (Min) | 120V |
| Power (Watts) | 48W |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -20°C~50°C |
| Package | Box |
| Size / Dimension | 2.97" L x 1.77" W x 3.78" H (75.5mm x 45.0mm x 96.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cULus |
| Base Product Number | AD1048 |
| Efficiency | 83% |
| Features | Adjustable Output |
| Input Type | AC or DC |
| Mfr | ATOP Technologies |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | - |
