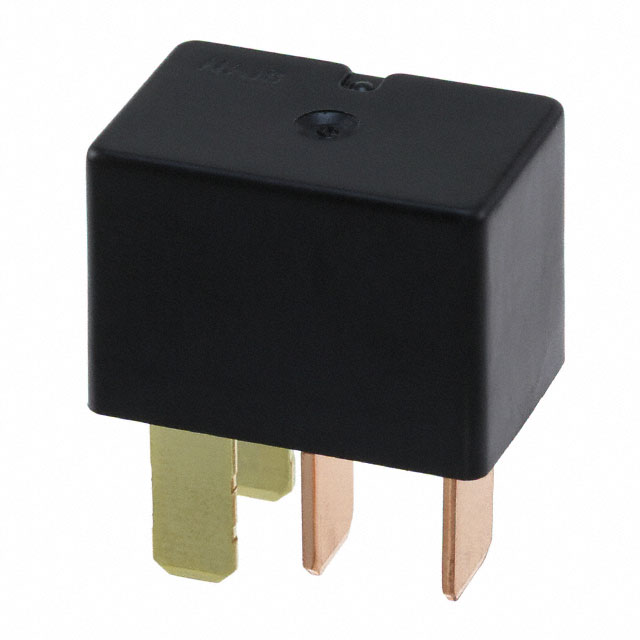

ACV31212
PanasonicJapan

ACV31212

ObsoleteAutomotive Relays

RELAY AUTOMOTIVE SPST 20A 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current84 mA
Coil Power1W
Coil Voltage12VDC
Contact Rating (Current)20 A
Must Operate Voltage7 VDC
Must Release Voltage0.6 VDC
Switching Voltage14VDC - Nom
Environment and package
Mounting TypeSocketable
Operating Temperature-40°C ~ 85°C
PackageTube
Other
Base Product NumberACV312
Coil Resistance142 Ohms
Coil TypeNon Latching
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Alloy, Cadmium Free
FeaturesResistor
MfrPanasonic Electric Works
Operate Time10 ms
Product StatusObsolete
Release Time15 ms
SeriesACV
Termination StylePlug In
