AZ DisplaysUnited States

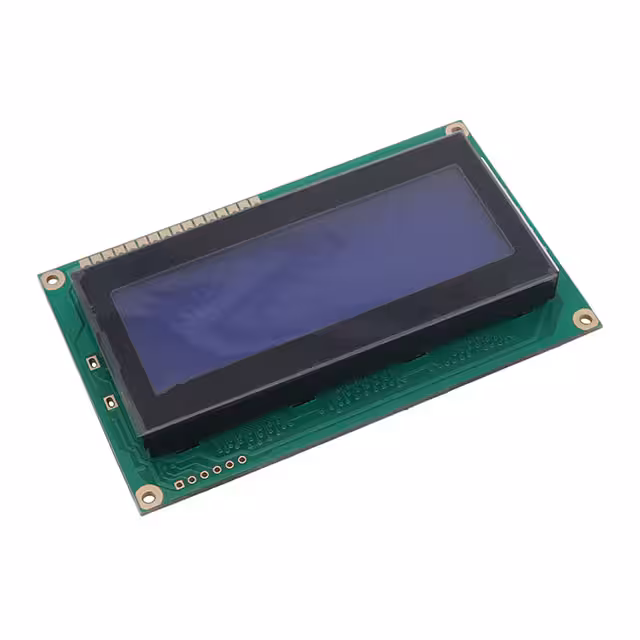

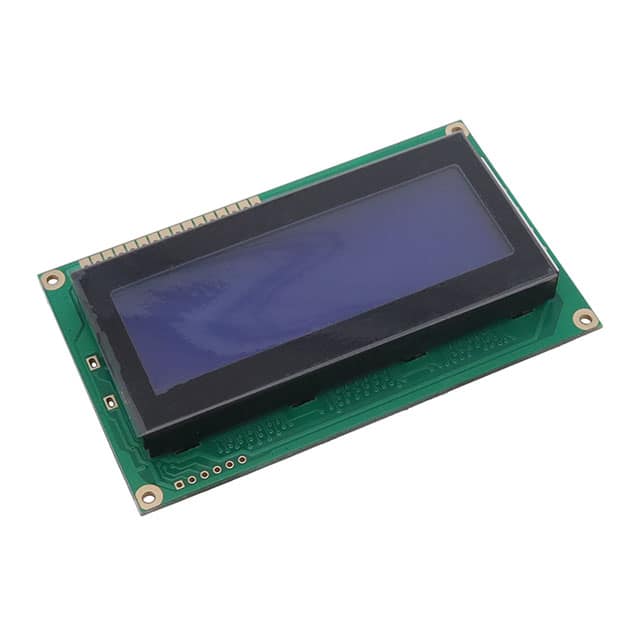

DISPLAY LCD CHARACTER 20X4 TRANS
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 2.7V ~ 5.5V |
| Environment and package | |
| Character Size | 4.75mm H x 2.95mm W |
| Dot Size | 0.55mm W x 0.55mm H |
| Operating Temperature | - |
| Package | Box |
| Other | |
| Background Color | - |
| Backlight | LED |
| Character Format | 5 x 8 Dots |
| Controller Type | KS0066 |
| Display Format | 20 x 4 |
| Display Mode | - |
| Display Type | - |
| Interface | - |
| Mfr | AZ Displays |
| Number of Characters | 80 |
| Outline L x W x H | 98.00mm x 60.00mm x 13.50mm |
| Product Status | Not For New Designs |
| Series | ACM2004D |
| Text Color | - |
| Viewing Area | 76.00mm L x 25.20mm W |
Documents
No documents are linked to this part yet.
