Thermoelectric Conversion Systems LtdUnited Kingdom

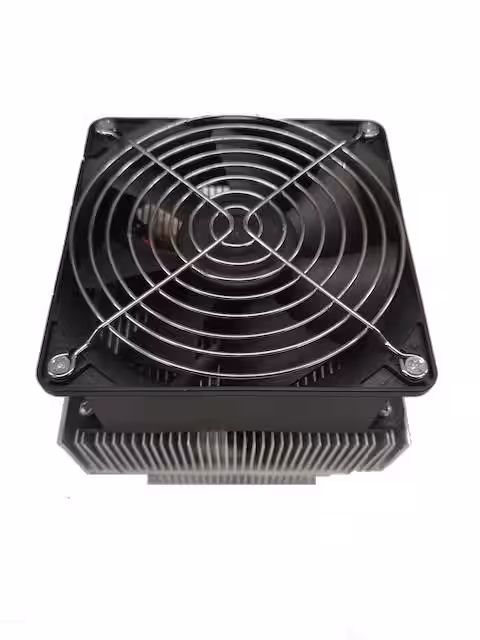

50W THERMOELEC ASSY AIR-AIR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 4.5 A |
| Power - Cooling | 50 W |
| Power - Input | 110 W |
| Voltage | 24 V |
| Environment and package | |
| Dimensions - Overall | 125mm L x 125mm W x 140mm H |
| Operating Temperature | -40°C~70°C |
| Package | Box |
| Other | |
| Base Product Number | AC-50 |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Mfr | Thermoelectric Conversion Systems Ltd |
| Product Status | Active |
| Series | AC |
| Weight | 3.7 lbs (1.7 kg) |
