Triad MagneticsUnited States

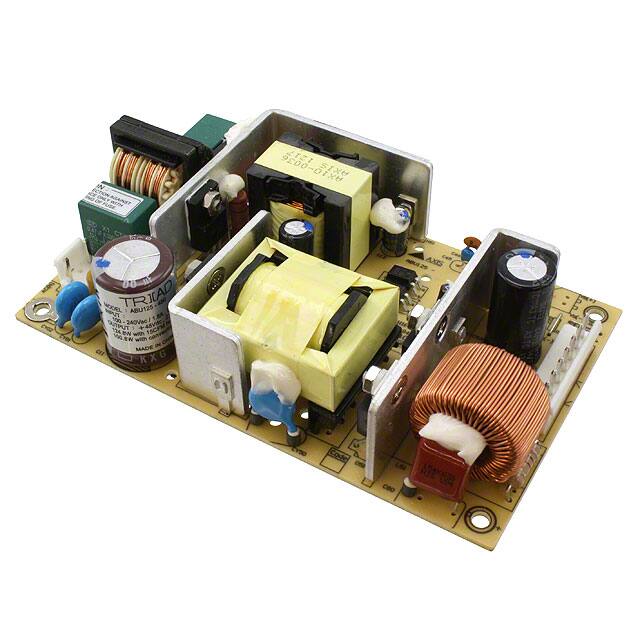

AC/DC CONVERTER 48V 100W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage48 V
Output current2.09 AMax
Power100 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.09 A |
| Power (Watts) | 100W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, TUV, UR |
| Efficiency | 87% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mfr | Triad Magnetics |
| Minimum Load Required | Yes |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | ABU125 |
| Type | Open Frame |
