Taiwan Semiconductor CorporationTaiwan, China

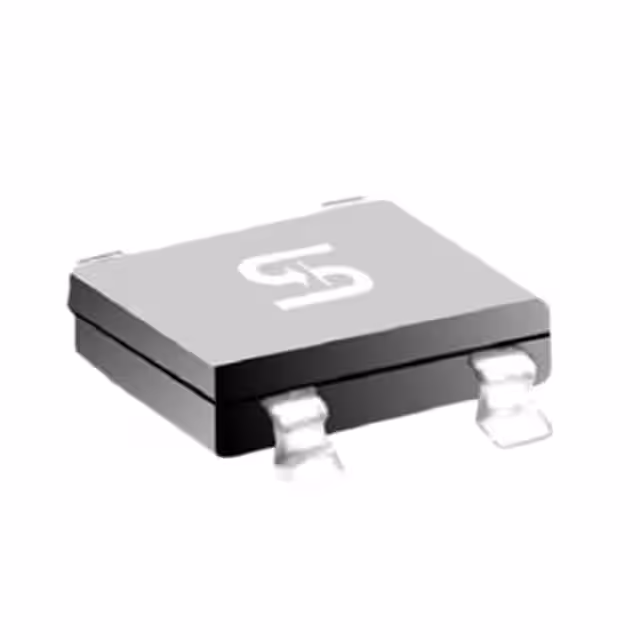

BRIDGE RECT 1P 800V 800MA ABS
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage800 V
Average rectified current800 mA
Forward voltage950 mVMax · 400 mA
TypeStandard
| Power | |
|---|---|
| Current - Average Rectified (Io) | 800 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 400 mA |
| Voltage - Peak Reverse (Max) | 800 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | ABS |
| Other | |
| Base Product Number | ABS8 |
| Diode Type | Single Phase |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | - |
| Technology | Standard |
