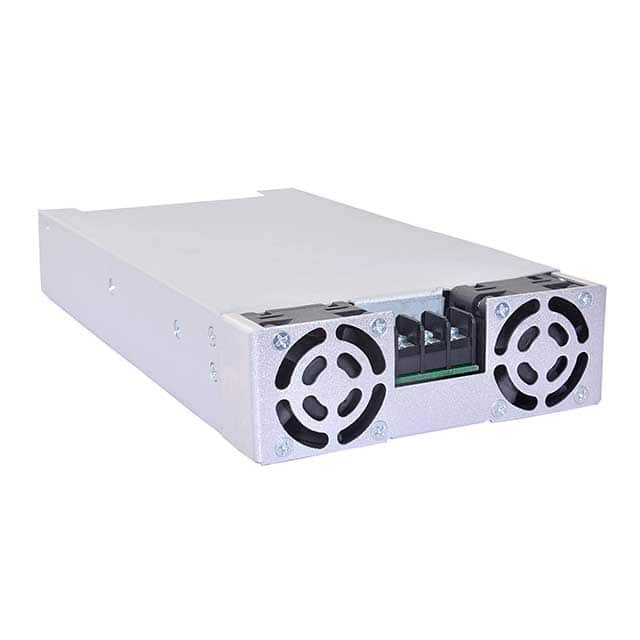

AC/DC CONVERTER 24V 1000W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage24 V
Output current41.66 AMax
Power1 kWMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 41.66 A |
| Power (Watts) | 1000W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 390 VDC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Bulk |
| Size / Dimension | 9.51" L x 5.00" W x 1.61" H (241.6mm x 127.0mm x 41.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, NEMKO |
| Base Product Number | ABE1000 |
| Efficiency | 93% |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mfr | Bel Power Solutions |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | ABE1000 (1000W) |
| Type | Enclosed |
