Bel Power SolutionsUnited States

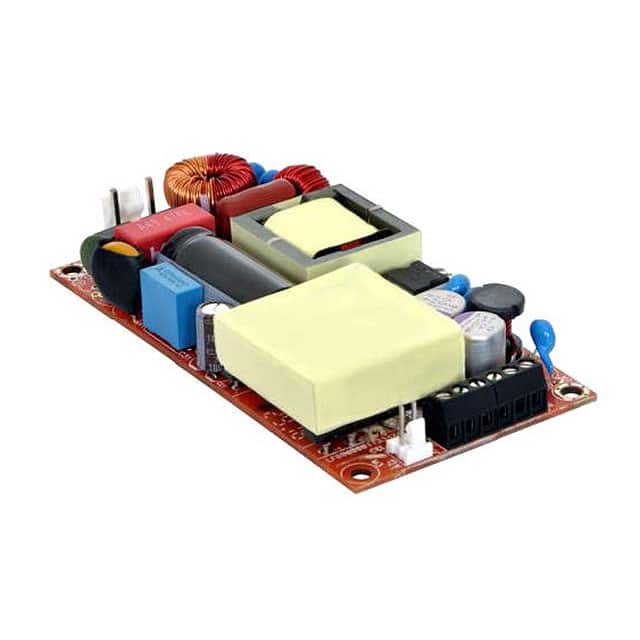

AC/DC CONVERTER 58V 120/180W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage80 ~ 264 V
Output voltage58 V
Output current1.94 AMax
Power120 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 1.94 A |
| Power (Watts) | 120W (180W Forced Air) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 58V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | ABC180 |
| Efficiency | 92% |
| Features | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input |
| Mfr | Bel Power Solutions |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | ABC180 (180W) |
| Type | Open Frame |
