Bel Power SolutionsUnited States

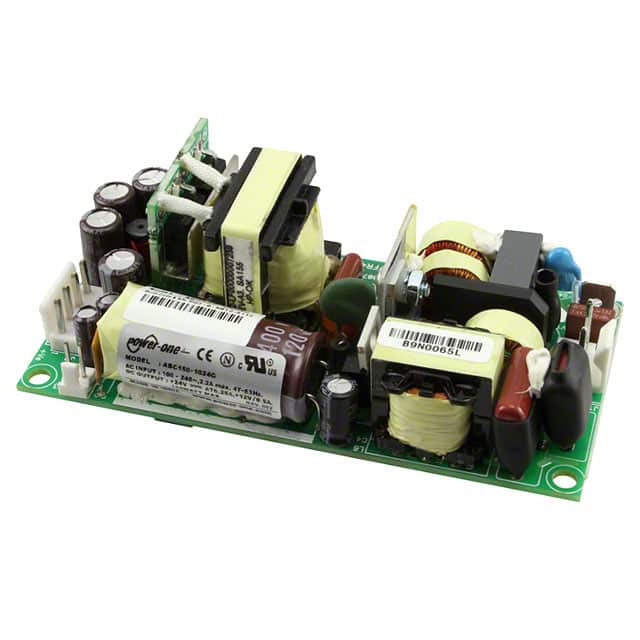

AC/DC CONVERTER 48V 110/150W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage48 V
Output current2.08 AMax
Power110 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 2.08 A |
| Power (Watts) | 110W (150W Forced Air) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | ABC150 |
| Efficiency | 86% |
| Features | Adjustable Output, DC Input Capable, Standby Output, Universal Input |
| Mfr | Bel Power Solutions |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | ABC150 (150W) |
| Type | Open Frame |
