Bel Power SolutionsUnited States

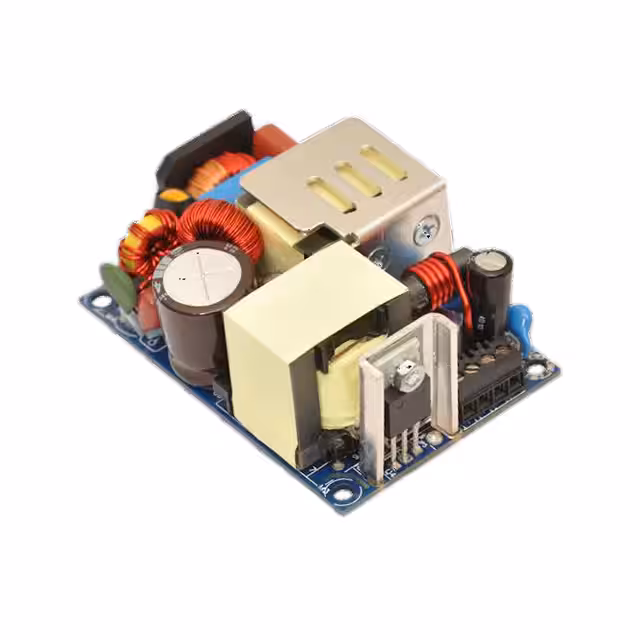

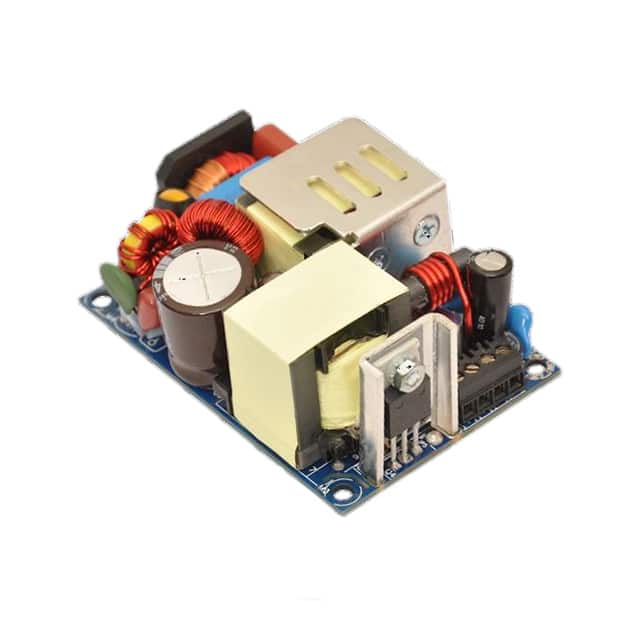

AC/DC CONVERTER 15V 100W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage15 V
Output current6.66 AMax
Power100 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 6.66 A |
| Power (Watts) | 100W (120W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Bulk |
| Size / Dimension | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.1mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | ABC120 |
| Efficiency | 90% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mfr | Bel Power Solutions |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | ABC120 (120W) |
| Type | Open Frame |
