Allegro MicroSystemsUnited States
IC LED DRV CTRL PWM 80MA 24TSSOP
All alternatives
View full reportTechnical parameters
Key specs
TopologyBoost
Outputs6
Output current per channel80 mAMax
Input voltage4.3 ~ 5.5 V
| Power | |
|---|---|
| Current - Output / Channel | 80mA |
| Voltage - Output | - |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 4.3V |
| AC and DC characteristics | |
| Frequency | 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) |

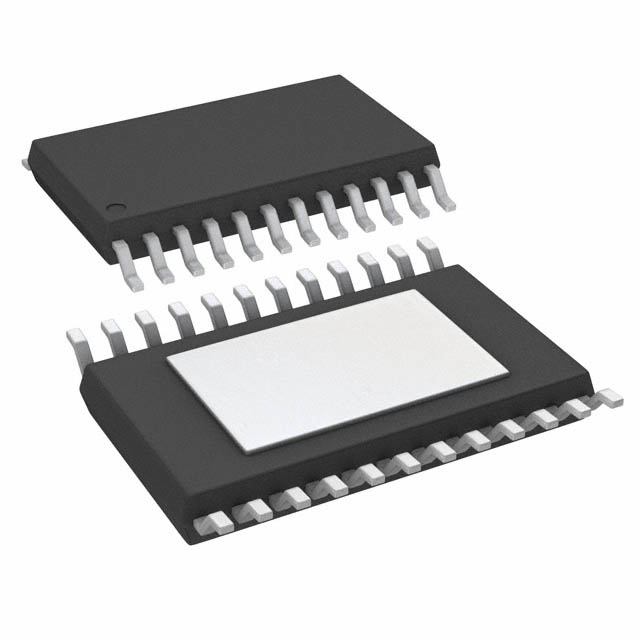

| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP-EP |
| Other | |
| Applications | Backlight |
| Base Product Number | A8507 |
| Dimming | PWM |
| Internal Switch(s) | No |
| Mfr | Allegro MicroSystems |
| Number of Outputs | 6 |
| Product Status | Obsolete |
| Series | - |
| Topology | Step-Up (Boost) |
| Type | DC DC Controller |
