Switchcraft Inc.United States

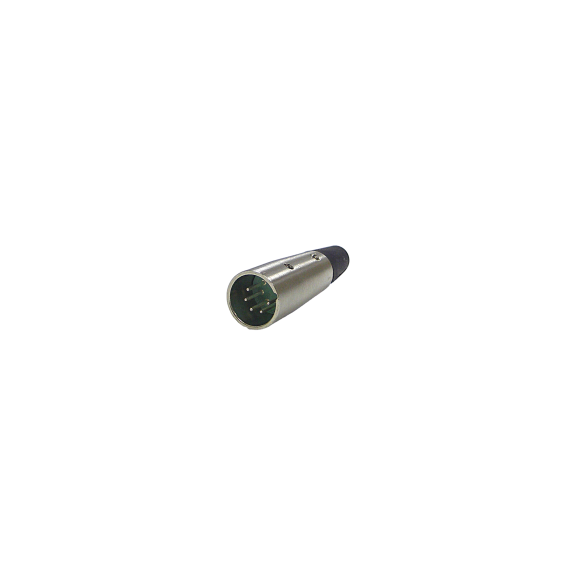

CONN RCPT MALE XLR 5P SOLDER CUP
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderMale
Current rating7.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 125VAC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Other | |
| Applications | Audio, Instrumentation |
| Backshell Material, Plating | Zinc, Black Finish |
| Base Product Number | A5M |
| Cable Opening | 0.210" ~ 0.300" (5.33mm ~ 7.62mm) |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Material | Brass |
| Fastening Type | Latch Lock |
| Features | Backshell, Cable Clamp, Ground, Strain Relief |
| Ingress Protection | - |
| Insert Material | Polyester |
| Material Flammability Rating | - |
| Mfr | Switchcraft Inc. |
| Number of Positions | 5 |
| Orientation | Keyed |
| Primary Material | Metal |
| Product Status | Active |
| Series | Q-G® A |
| Shell Finish | Black |
| Shell Material | Zinc |
| Shielding | - |
| Termination | Solder Cup |
