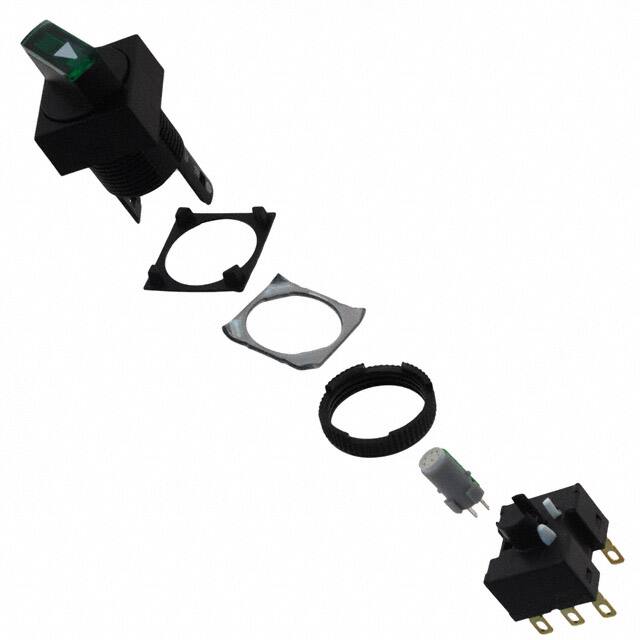

SWITCH SELECT 3POS DPDT 5A 125V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-On
Current rating5 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A (AC), 3A (DC) |
| Illumination Voltage (Nominal) | 24 VDC |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C~55°C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Other | |
| Approval Agency | CCC, cUL, TUV, UL |
| Circuit | DPDT |
| Depth Behind Flange | 28.50mm |
| Electrical Life | 100,000 Cycles |
| Features | Bezel - Square |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Green |
| Ingress Protection | IP65 - Dust Tight, Oil and Water Resistant |
| Mechanical Life | 250,000 Cycles |
| Mfr | Omron Automation and Safety |
| Number of Positions | 3 |
| Product Status | Obsolete |
| Series | A165W |
| Switch Function | On-On-On |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
