Vishay Beyschlag/Draloric/BC ComponentsUnited States

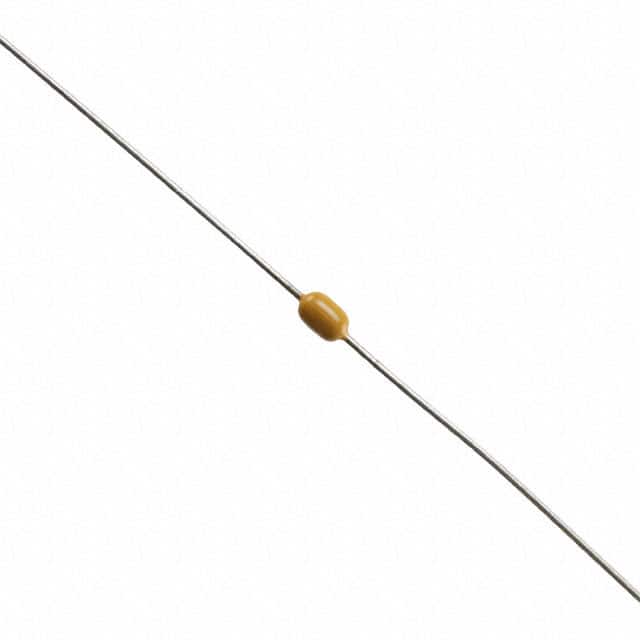

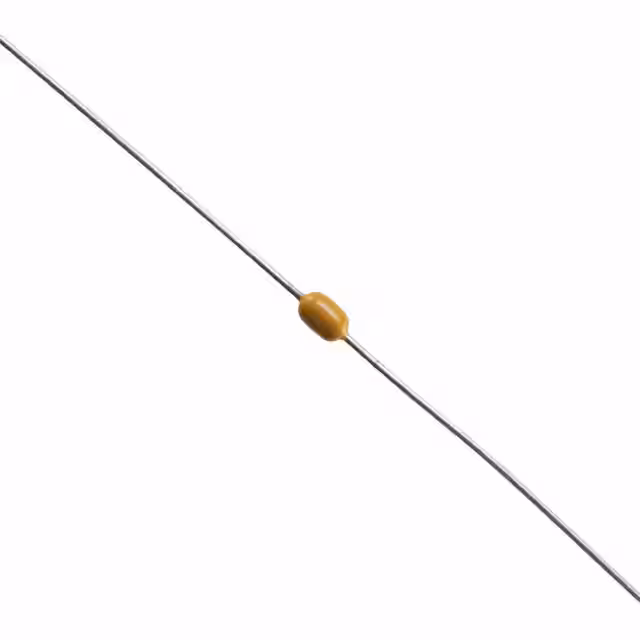

CAP CER 1500PF 50V C0G/NP0 AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance1.5 nF
Rated voltage50 V
Tolerance10 %
DielectricC0G (NP0)
| Power | |
|---|---|
| Voltage - Rated | 50V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Box (TB) |
| Package / Case | Axial |
| Size / Dimension | 0.098" Dia x 0.150" L (2.50mm x 3.80mm) |
| Temperature Coefficient | C0G,NP0 |
| Other | |
| Applications | General Purpose |
| Capacitance | 1500 pF |
| Failure Rate | - |
| Features | - |
| Lead Spacing | - |
| Lead Style | Straight |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active |
| Ratings | - |
| Series | A |
| Thickness (Max) | - |
| Tolerance | ±10% |
