Century Spring CorpUnited States

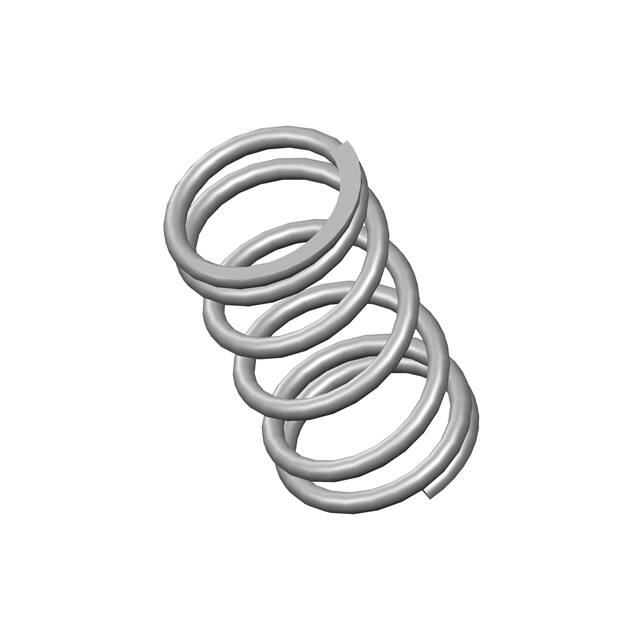

COMP O= .375,L= .69,W= .039
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Base Product Number | A15 |
| Diameter - Inside | 0.297" (7.54mm) |
| Diameter - Outside | 0.375" (9.53mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 0.690" (17.53mm) |
| Material | Spring Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 21.0 lbs/in |
| Series | - |
| Wire Diameter | 0.039" (0.99mm) |
Documents
No documents are linked to this part yet.
