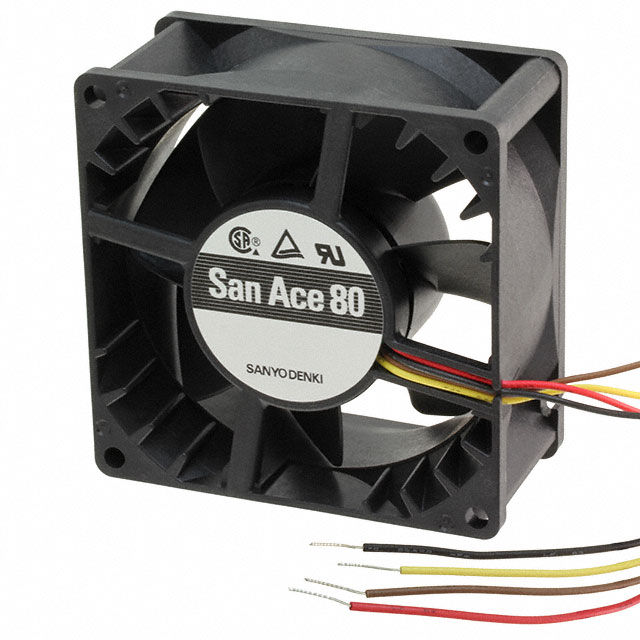

FAN AXIAL 80X38MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1.20A |
| Power (Watts) | 14.4 W |
| Voltage Range | 10.8 ~ 13.2VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 60.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | Varies Based on Temperature |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Box |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 100.6 CFM (2.82m³/min) |
| Approval Agency | CSA, TUV, UL |
| Base Product Number | 9GA0812 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Sanyo Denki America Inc. |
| Product Status | Active |
| RPM | 10500 RPM |
| Series | San Ace 80 |
| Static Pressure | 1.930 in H2O (480.8 Pa) |
| Termination | 4 Wire Leads |
| Weight | 0.353 lb (160.12 g) |
| Width | 38.00mm |
