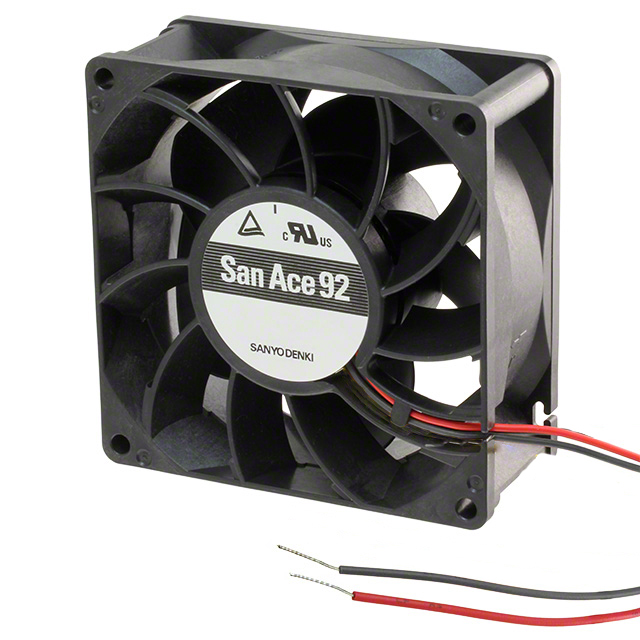

FAN AXIAL 92X32MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.080A |
| Power (Watts) | 1.92 W |
| Voltage Range | 20.4 ~ 27.6VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 25.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 40000 Hrs @ 60°C |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Box |
| Size / Dimension | Square - 92mm L x 92mm H |
| Other | |
| Air Flow | 42.4 CFM (1.19m³/min) |
| Approval Agency | CSA, TUV, UL |
| Base Product Number | 9G0924 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Sanyo Denki America Inc. |
| Product Status | Active |
| RPM | 2100 RPM |
| Series | San Ace 92 |
| Static Pressure | 0.108 in H2O (27.0 Pa) |
| Termination | 2 Wire Leads |
| Weight | 0.375 lb (170.1 g) |
| Width | 32.00mm |
