ebm-papst Inc.Germany

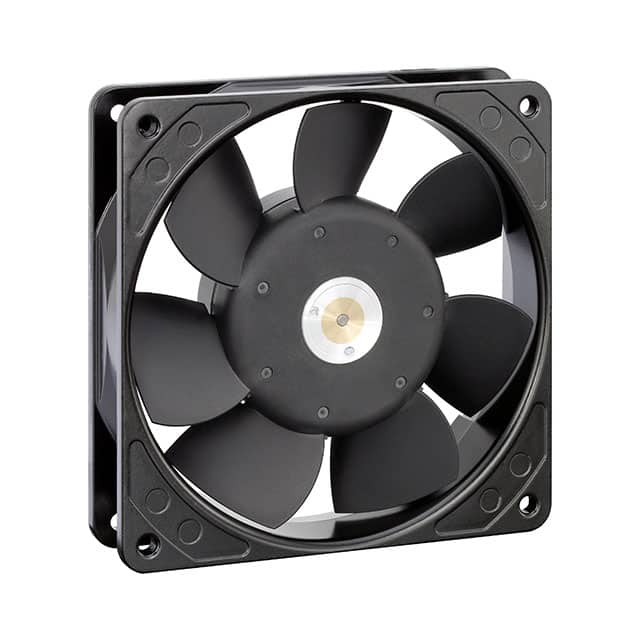

FAN AXIAL 119X25MM 230VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 9.50W |
| Voltage Range | - |
| Voltage - Rated | 230VAC |
| AC and DC characteristics | |
| Noise | 29.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 57500 Hrs @ 40°C |
| Operating Temperature | -40~176°F(-40~80°C) |
| Package | Bulk |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 49.4 CFM (1.38m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 9956 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 1850 RPM |
| Series | 9900 |
| Static Pressure | - |
| Termination | 2 Terminals |
| Weight | 0.716 lb (324.77 g) |
| Width | 25.00mm |
