Belden Inc.United States

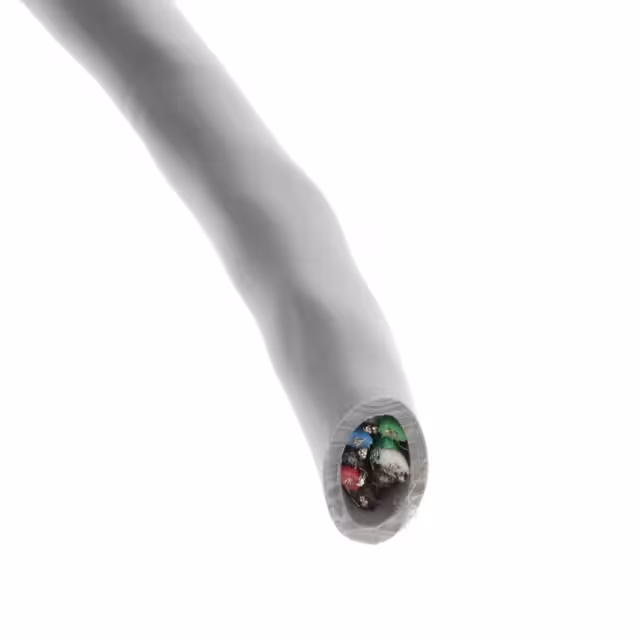

CBL 4PR 24AWG SHLD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C~80°C |
| Package | Spool |
| Other | |
| Base Product Number | 9728 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/32 |
| Features | Drain Wire |
| Jacket Color | Chrome |
| Jacket (Insulation) Diameter | 0.363" (9.22mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0480" (1.219mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Belden Inc. |
| Number of Conductors | 8 (4 Pair Twisted) |
| Product Status | Active |
| Ratings | UL Style 2919 |
| Series | Classics |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Documents
No documents are linked to this part yet.
